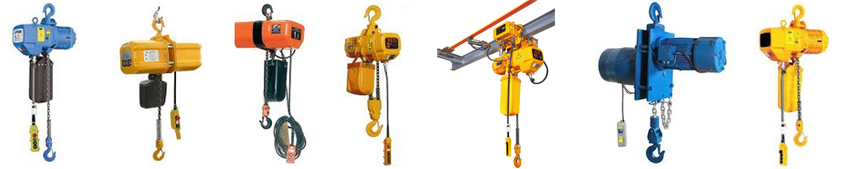

Chain Electrical Hoist

  Chain Electrical Hoist

We are the Leading suppliers of high quality industrial and entertainment electric chain hoists for lifting and suspending loads up to 50000kg (50T). We like to ensure we can provide you with an electric chain hoist that will suit all of your needs. Our Chain Electrical Hoist are manufactured using superior quality basic materials with advanced technology under strict supervision of the process experts.

Chain Electrical Hoist
Chain Electrical Hoist Chain Electrical Hoist

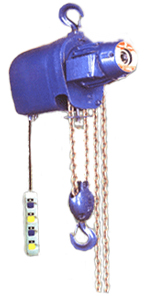

"BABY" With Hook Suspension
Capacity
500 kg
1000 kg
2000 kg
500 kg
1000 kg
2000 kg
Chain Falls
no
2
2
4
A
750
750
860
Hoisting Speed
m/min
4.8
4.8
2.4
B
150
150
150
Hoist Motor
H.P.
1.5
1.5
1.5
C
120
120
120
Height Of max Lift (std 3m)
M
9.6
9.6
4.8
D
31
31
37
Length of control cable
M.
At your choice
E
525
525
525
Approx . Wt. With
Chains For 3m Lift
kg.
63
63
65
F
285
285
285
Approx . Wt. Per
Meter Additional Lift
kg.
2.6
2.6
5.2
* Higher Lifts Offered On request
Chain Electrical Hoist
Capacity
500 kg
1000 kg
2000 kg
500 kg
1000 kg
2000 kg
Min. Runaway Bend (radius of curvature)
mm
1250
1500
1500
A for B max
339
354
361
A for B min
84
107
146
Approx. weight with
chains for 3 m lift
kgs.
67
73
82
B max
305
305
305
Approx. weight per
metre additional lift
kgs.
2.6
2.6
5.2
B min
50
58
90
C min
125
125
150
D (with hook)
825
840
965
E
525
525
525
F
285
285
285
G
160
200
275
H
150
150
150
I
120
120
120
J
31
31
37
K Max*
18
28
28
* To calculate clearance under beam subtract beam flange thickness from K.
* Std. Supply will be with hook suspension
Chain Electrical Hoist
Capacity
500 kg
1000 kg
2000 kg
500 kg
1000 kg
2000 kg
Traveling motor
m/min.
10
10
10
A for C Max.
493
493
500
Traveling Speed
H.P.
0.25
0.25
0.25
Min. Runaway Bend (radius of curvature)
mm
1500
1500
1500
A for C Min.
370
370
395
Approx. weight with chains for 3 m lift
kgs.
87
87
96
B
840
840
965
Approx. weight per metre additional lift
kgs.
2.6
2.6
5.2
C Max.
305
305
305
C Min.
58
58
90
D Min.
150
150
200
E
525
525
525
F
285
285
285
G
31
31
37
H Min.
23
23
14
J Max*
28
28
28
* To calculate clearance under beam subtract beam flange thickness from J.
( Data tolerance +/- 10% )
All dimensions in mm..
  • An ISI Marked Manufacture from an ISO 9001:2000 Certified Company, Bringing you assured quality & Interchangeability of Parts
  • Equipped with a Grade 80 Load Chain for Long chain life & a higher safety factor
  • Assuring you reliability with its Rugged German design and Customer Satisfaction spanning more than 30 years
  • Precision Machined Case hardened alloy Steel Gears Long life, noiseless operation
  • Has a Light weighted simple mounting design for ease of Installation
  • Built in electrical control panel . Ready to use
  • Precision Machined & hardened Load Chain Wheel benefiting longer life span of LCW & smooth chain operation
