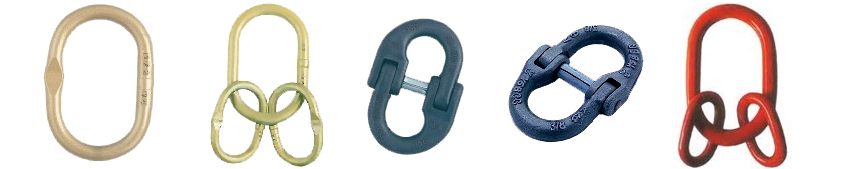

Crosby Fittings

Crosby Fittings

	Oblong Master Link

Item No.	W.L.L (tones)	Dimensions (mm)			N.W
Item No.	W.L.L (tones)	IL	IW	D	N.W
8-003-06	1.5	100	60	11	0.2
8-003-0806	3.2	120	70	14	0.4
8-003-1008	4.0	140	80	17	0.7
8-003-13	6.3	160	90	19	1.0
8-003-1310	8.0	160	22	22	1.5
8-003-16	11.5	190	25	25	2.2
8-003-1613	15.0	180	105	28	2.7
8-003-19	17.0	200	120	30	3.5
8-003-2216	20.0	240	140	34	5.1
8-003-26	25.0	250	150	38	7.0
8-003-2619	30.0	250	150	40	8.0

	Enlarge Oblong Master Link Assembly

Item No.	W.L.L (tones) b 0^o-450^o		W.L.L (tones) b 45^o-60^o		Dimensions (mm)							N.W (kg)
Item No.	4:1	5:1	4:1	5:1	ILL	D	IW	IL	D	IW	IL	N.W (kg)
8-007-06	4.6	3.7	3.2	2.6	224	16	61	120	14	60	120	1.4
8-007-08	8.6	6.9	8.0	6.4	280	22	90	162	20	70	140	3.6
8-007-10	14.5	11.6	10.6	8.5	312	28	110	200	22	70	140	5.5
8-007-13	23.1	18.5	16.9	13.5	419	36	140	270	28	90	185	11.9
8-007-16	29.0	23.2	21.4	17.1	440	40	155	280	32	110	200	16.4
8-007-20	36.5	29.2	26.1	20.9	500	45	175	320	36	125	225	23.5
8-007-22	45.2	36.2	33.4	26.7	560	50	195	350	40	130	260	32.3

	Web Sling Connector

Item No.	W.L.L (tones)		Dimensions (mm)					N.W (kg)
Item No.	4:1	5:1	A	B	D	K	W	N.W (kg)
8-016-06	1.12	0.9	15	17	7	57	39	0.2
8-016-07	2.0	1.6	18	22	9	62	40	0.3
8-016-10	3.15	2.5	25	26	12	78	47	0.6
8-016-13	5.3	4.2	30	35	16	95	53	1.0
8-016-16	8.0	6.4	36	41	20	115	67	2.0
8-016-18/20	12.5	10.0	42	46	23	132	80	3.0

	Connecting Link

Item No.	W.L.L (tones)	Dimensions (mm)				N.W (kg)
Item No.	W.L.L (tones)	K	A	D	B	N.W (kg)
8-015-06	1.12	44	15	7	17	0.1
8-015-07	2.0	59	18	9	22	0.2
8-015-10	3.15	68	25	13	26	0.3
8-015-13	5.3	72	30	16	35	0.7
8-015-16	8.0	100	36	19	38	1.1
8-016-18/20	12.5	122	42	22	46	1.7
8-015-22	15.0	152	49	24	60	3.0
