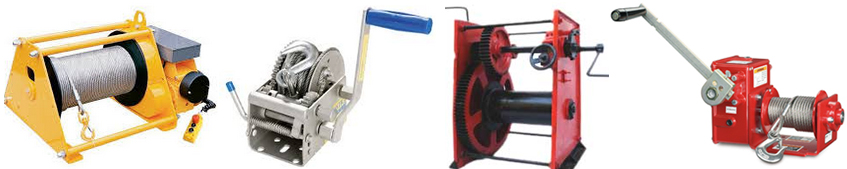

We are the leading company for manufacturer, exporter and supplier of Winches, Crab Winch, Wall Mounting Winch, Electric Winch. Known in the market as a manufacturer and supplier, we are engaged in offering Winches, Crab Winch, Wall Mounting Winch, Electric Winch. Following industry defined guidelines, manufacture by using contemporary machines, modernize technology and prime grade raw material at our end. We offer the entire products in a wide range of specifications.

Crab Winch
Crab Winch
Walt Mounting Winch
Wall Mounting Winch
Electric Winch
Electric Winch
Crab Winch
Hand Operated, Double Purchase Crab Winch
Hand Operated, Double Purchase Crab Winch
Front View
Side View
Side View Cross Section
Front View
Side View
Side View Cross Section
To Lift Direct
Drum DL
DrumLength
Thick
ness
Main Shaft Dia mm
No Of Driving Shaft
Dia Of Driving Shaft
Dia Of The ROD
No Of The ROD
Height
Width Purch-ase Dia Main Flange Dia
From Barrel inches inches
Of Side
Plate
Penion
tons
mm
inches
inches inches
inches
inches
1
5 ??
16
6
32
2
1 ???
16
4
25
21
Double
17 ??
9
1.5
5 ??
18 ??
6
32
2
1 ??
16
4
29
23
Double
21 ??
9
2
6 ???
22
8
40
2
1 ???
20
4
35
27
Double
26 ??
11
3
6 ???
24
8
45
2
1 ??
22
4
39
30
Double
30
11
5
8 ???
30
10
50
2
1 ??
25
4
48
34
Double
35 ???
13
7.5
8 ???
30
10
50
3
1 ??
25
4
48
34
Double
35 ???
13
10
8 ???
34
11
65
3
1.875
32
4
48
35
Double
34
16
Note
  • All welding are 5 mm fillet
  • Section to conform IS-226
  • Cast Iron Milling Cut Gears
  • Mild Steel side plates
Hand Operated, Treble Purchase Crab Winch
Hand Operated, Treble Purchase Crab Winch
Front View
Side View
Side View Cross Section
Front View
Side View
Side View Cross Section
Note
  • All welding are 4 mm fillet
  • Section to conform IS-226
  • Cast Iron Milling Gears
  • Mild Steel side plates
Wall Mounted Winches
Wall Mounted Winches - Front View Wall Mounted Winches - Side View

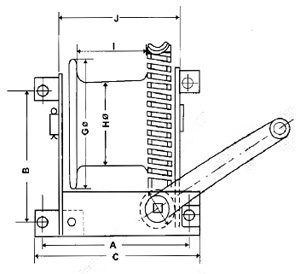

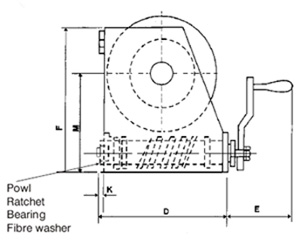

Front View
Side View
Capacity (kgs)
A
B
C
D
E
F
G
H
I
J
K
L
M
250
204
104
221
165
175
213
118
69
104
170
6.7
14
95
500
254
215
317
254
181
263
203
130
130
222
9.3
14
182
1000
254
215
317
254
181
263
203
130
130
222
12.7
17
182
1500
310
215
360
275
235
267
200
129
177
267
28.0
14
178
2000
349
241
381
304
250
300
300
184
206
305
12.7
17
210
3000
349
241
381
304
260
308
300
184
206
305
15.5
19
210
5000
400
315
480
570
400
500
335
225
250
460
20.0
33
315
Note
  • Drum : Graded Cast Iron
  • Worm : EN 8 or 9 heat treated
  • Wretch : EN 8 or 9 heat treated
  • Bearing : Thrust
  • Side plate : Mild Steel
  • Thickness of side plate : 8 mm
Electric Winches

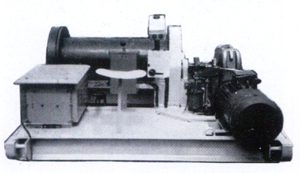

5 Ton Capacity Electric Winches Electric Winches

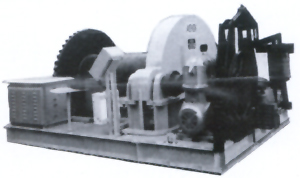

5 Ton Capacity Electric Winch.
Motor
CROMPTON/ GEC/ KIRLOSKER" Make Slipring Crane Duty Motor 960 RPM, 440 Volt, 3 phase, 1 Hr. rated 40% ED as per IS: 325 having 'B' Class insulation.
Drum
Made from Rolled steel as per IS:226 of adequate thickness with side flange. Drum running on Bearing to take adequate rope length.
Shaft
Forged from EN-8 steel machine fitted with Drum. Chassis: Fabricated from joist of adequate size as per IS: 226 to take all shocks. All the stands on the chassis are Boxed type.
Reduction
1st Reduction: through Elecon/Radicon make worm reduction Gear Box totally enclosed running on oil.
2nd Reduction: through open machine cut Gear from carbon steel & pinion made of Alloy Steel duly heat treated.
Break
  • Electro Magnetic Hydraulic Thruster Brake of reputed make.
  • Mechanical Bend Brake with screw system with Ferrodo Brake lineing.
  • Extra safety Ratchet pawl arrangement on the side of the drum for not moving the drum in opposite direction for extra safety.
Coupling
  • We will provide flex. Brake Drum coupling on the out put of motor & Input of Gear Box.
  • Flex. coupling pin type on the output shaft of the Gear Box & In put shaft of the pinion.
Controls
  • Drum controller of TAC Make 5/7 steps. Forward & Reverse mtio.
  • Control panel in sheet in sheet metal Box for dust, heat & water resistance containing of :
    • Isolator
    • Overload Relay
    • Contector
    • Single phase preventor
    • FuseHrc.
    • Amp. Meter
  • Voilt Meter (h) Neon Lamp Push Button for start & Stop Resistance Box 10 Minute rating.
Wiring & Pairrting
We will provide all wiring from weather proof ar mured copper cable of adequate size & the Winch will be painted by two coats of primer & Two coats of Grey paint.
Operator seat
We will provided operator seat by the side of controls.
Note
  • Speed of 5 Ton & 10 Ton winch is 8/1OMTS per minutes.
General Description
  • SKID Frame Type- Frame made out of heavy steel sections
  • M.S. Drums
  • M. S. Gear & Pinion. Teeth Cut on Gear Hobbing Machine for Perfect Pitch.
  • Reduction through Gear Box and Bull Gear & Pinion.
  • Hydraulic Thrustor Brake
  • ElectroMagneticBrake
  • Electro Magnetic Brake.
  • Manual Brake
  • Carbon Steel Shaft
  • A Safety Ratchet System
  • All controls within reach of operator.
  • Variable Speed Motor.
  • Load & Speed as per Requirement of the Customer.
Detail required for submission by Customer
  • Rope pull in Tons ( Capacity)
  • Speed required Mtr./per Min.
  • Rope size & Length required on Drum.
  • Available Elec. Current supply.
  • Description of Application.
  • Other accessories required with.
