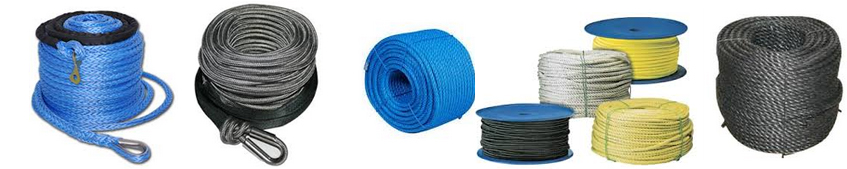

Synthetic Ropes

Creatomac supply a large range of Synthetic Ropes that are suitable for all industry applications. Our Synthetic Ropes products have excellent build and high corrosion resistance capabilities.

3 Strand Synthetic Ropes

8 Strand Synthetic Ropes

3 Strand Synthetic Ropes

3 Strand Industrial (Synthetic) Ropes

Diameter (mm)	Polypropelene Parapro Ropes			Nylon Multi filament Ropes
Diameter (mm)	Breaking Strength (kgf)	Runnage ( meter / kg)	Wt. per Coil of 220 meters (kg)	Breaking Strength (kgf)	Runnage ( meter / kg)	Wt. per Coil of 220 meters (kg)
4	214	135.00	1.63	320	95.24	2.30
6	602	60.00	3.67	750	44.40	4.95
8	1060	33.30	6.60	1345	25.00	8.80
10	1560	22.00	10.00	2088	16.20	13.60
12	2210	15.20	14.50	2995	11.20	19.60
14	3050	11.00	20.00	4095	8.20	26.80
16	3770	8.60	25.50	5300	6.30	35.00
18	4810	6.80	32.50	6695	5.00	44.00
20	5800	5.50	40.00	8300	4.10	54.00
22	6960	4.50	48.50	10000	3.30	66.00
24	8130	3.90	57.00	12000	2.80	78.00
26	9410	3.20	67.60	13950	2.40	92.40
28	10700	2.80	78.00	15800	2.10	107.00
30	12220	2.50	89.00	17755	1.80	122.00
32	13500	2.20	101.00	20000	1.60	139.00
36	16930	1.70	129.00	24900	1.25	176.00
40	20510	1.40	158.00	30000	1.00	218.00
44	24640	1.13	194.00	35800	0.80	264.00
48	28610	0.96	229.00	42000	0.70	312.00

Product Attributes

Polypropelene

High breaking strength & shock absorption capacity
Good abrasion resistance & easy knotting possible
Inert to chemicals

Nylon

Excellent breaking strength & high elongation
Good shock absorption
Strong & Durable

Product Assurance

Every coil carries a test certificate for :
Material, Breaking strength & Safe working load

Applications

Defence: Rappelling, Slithering,& Jackstayropes. Arrestor Barriers & Helideck nets. Tentage & Reinforcement ropes Ropeways & Rope Bridges

Material Handling: Tower Erection & Cable Pulling Slings for Metal tube handling Pantoon Bridges Sugarcane Trolley Pulling

Safty: Safety Nets Jumping Ropes Helipad Nets Gangway Nets Escape rope ladders Scramble Nets Bulk Cargo Nets

Weight are subject to a +/- 5% variation.
All values listed are as per results confirmed in accordance to test procedures IS 7071.
All specifications pertain to regular laid ropes and are applicable to new ropes
The products indicated in this brochure do not constitute the whole range of GWRL products.
Please contact us if other sizes and characteristics are required.
GWRL reserves the right to review its product specifications.
Safe working loads is 1/16th of the breaking strength.

8 Strand Synthetic Ropes

8 Strand Industrial (Synthetic) Ropes

Circ. (in)	Dia. (mm)	Polypropylene Ropes:		Nylon Ropes		Maxima Ropes		Maxi-Flex Ropes
Circ. (in)	Dia. (mm)	Breaking Strength (kgf)	Wt. per Coil of 220 meters ( kg).	Breaking Strength (kgf)	Wt. per Coil of 220 meters ( kg).	Breaking Strength (kgf)	Wt. per Coil of 220 meters ( kg).	Breaking Strength (kgf)	Wt. per Coil of 220 meters ( kg).
4.0	32	13500	101.00	20000	139.00	18500	101.00	20000	124.00
4.5	36	16930	129.00	24900	176.00	23250	129.00	24900	157.00
5.0	40	20510	158.00	30000	218.00	28000	158.00	30000	195.00
5.5	44	24640	198.00	35800	264.00	34000	194.00	35800	238.00
6.0	48	28610	229.00	42000	312.00	39500	229.00	46290	282.00
6.5	52	33110	268.00	48800	365.00	45500	268.00	54300	330.00
7.0	56	37850	312.00	56000	425.00	52000	312.00	62800	378.00
7.5	60	43280	359.00	63800	486.00	59500	359.00	72000	438.00
8.0	64	48960	407.00	72000	554.00	67500	407.00	82600	495.00
9.0	72	61500	515.00	89900	702.00	84500	515.00	102000	627.00
10.0	80	75640	638.00	109800	867.00	104000	638.00	125500	775.00
11.0	88	90760	772.00	130800	1049.00	125000	772.00	156000	1100.00
12.0	96	107100	916.00	153900	1250.00	148000	916.00	185000	1315.00
13.0	104	122900	1078.00	182140	1425.00	173500	1075.00	216000	1540.00
14.0	112	141830	1254.00	210200	1698.00	201000	1250.00	250000	1790.00
15.0	120	162860	1430.00	240200	1951.00	230000	1435.00	286000	2050.00

Product Attributes

Polypropylene Ropes

High breaking strength
Good abrasion resistance
Inert to chemicals
Better runnage & low elongation

Maxima (blended polymer) Ropes

Approx 40% higher breaking strength than PP
Excellent abrasion resistance
Value for money through down sizing

Nylon Ropes

Excellent breaking strength & higher elongation
Good shock load absorption
Strong & Durable

Maxi-Flex (composite fibers) Ropes

Higher strength compared to Nylon
Flexible & low elongation

Product Assurance

GWRL Test certificate with each lot. Ropes can be OCIMF certified based on customer requirement

Applications

Shipping: Mooring lines Splash target ropes Anchoring ropes Towing lines Messenger lines

Rope Articles : Towing stretchers SPM Hawsers

Oil Exploration: On board oil rigs Oil Exploration Platform

Weight are subject to a +/- 5% variation.
All values listed are as per results confirmed in accordance to test procedures IS 7071.
All specifications pertain to regular laid ropes and are applicable to new ropes
The products indicated in this brochure do not constitute the whole range of GWRL products.
Please contact us if other sizes and characteristics are required.
GWRL reserves the right to review its product specifications.
Safe working loads is 1/16th of the breaking strength.
