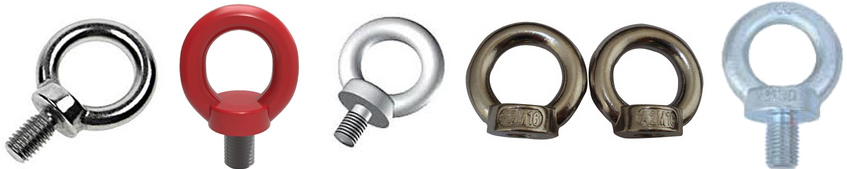

Eye Bolts

Mild Steel Eye Bolts

High Tensile Eye Bolts

Mild Steel Eye Bolts

S.W.L. at 0^o kg	Size Dia. A	Coarse Pitch	B	D	E	F	G	H	M	Approx Wt. each kg.
85	8	1.25	20	6	20	8	18	12	10	0.06
150	10	1.50	25	8	25	10	22	18	12	0.11
220	12	1.75	30	10	30	12	26	22	14	0.18
380	16	2.00	35	12	35	14	30	28	16	0.28
570	20	2.50	40	14	40	16	35	30	19	0.44
810	22	2.50	45	16	45	18	40	35	21	0.55
1050	24	3.00	50	18	50	20	45	38	24	0.74
1700	30	3.50	65	22	60	24	55	45	28	1.66
2500	36	4.00	75	26	70	28	65	55	32	2.7
3400	42	4.50	85	30	80	32	75	65	38	4.0
5200	48	5.00	100	35	90	38	85	70	46	6.4
6500	56	5.50	110	38	100	42	95	80	50	8.8
8700	64	-	120	42	110	48	105	90	58	-
13000	72	-	150	50	140	60	130	105	72	-
17000	80	-	170	55	160	68	150	120	80	-
20000	100	-	190	60	180	75	165	130	88	-

All dimensions in mm
Proof Load = 2 x S.W.L. (Safe Working Load)
Other threads can also be supplied to special order.

Shoulder Nut Eye Bolt - Installation for Angular loading

The threaded shank must protrude through the load sufficiently to allow full engagement of the nut.

If the eye bolt protrudes so far through the load that the nut cannot be tightened securely against the load, use properly sized washers to take up the extra space

Between The Nut And The Load

Place washers or spacers between nut and load so that when the nut is tightened securely, the shoulder is secured flush against the load surface.

Forged Eye Bolt Warning & Applications

Important Safety Information - Read & Follow

Inspection / Maintenance Safety

Never use eye bolt that shows signs of wear or damage

Never use eye bolt if eye or shank is bent or elongated.

Always be sure threads on shank and receiving holes are clean

Never machine, grind, or cut eye bolt.

Assembly Safety

Never exceed load limits specified in Table I

Never use regular nut eye bolts for angular lifts.

Always use shoulder nut eye bolts (or machinery eye bolts) for angular lifts.

For angular lifts, adjust working load as follows:

Never undercut an eye bolt to seat shoulder against the load.

Always countersink receiving hole or use washers to seat shoulder.

Always screw eye bolt down completely for proper seating.

Always tighten nuts securely against the load.

Shoulder Nut Eye Bolt - Installation for Angular loading

Operating Safety

Always stand clear of load

Never lift load with steady, even pull - do not jerk.

Always apply load to eye bolt in the plane of the eye, not at an angle

Never exceed the capacity of the eye bolt.

When using lifting slings of two or more legs, make sure the loads in the legs are calculated using the angle from the vertical to the leg and properly size the shoulder nut or machinery eye bolt for the angular load.

Warnings

Loads may slip or fall if proper eye bolt assembly and lifting procedures are not used.

A falling load can seriously injure or kill. Read,& understand all instructions and diagrams. Follow all eye bolt safety information provided here.

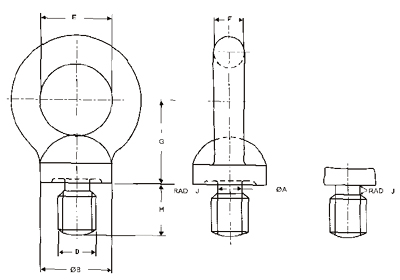

High Tensile Eye Bolts

Thread Size D	S.W.L.@ 0?? () Kg.	A mm	B mm	E mm	F mm	G mm	H mm	J mm	Coarse Pitch
M8	160	6	20	20	6.3	20	15	1	1.25
M10	250	7.7	24	24	8	25	17	1	1.5
M12	400	9.4	28	28	9.5	30	20	1	1.75
M16	630	13	34	34	12.5	36	24	1	2.0
M20	1000	16.4	40	40	16	45	27	1	2.5
M24	1600	19.6	48	48	19	53	31	2	3.0
M30	2500	25	56	56	24	64	39	2	3.5
M36	4000	30.3	67	67 x	28	75	48	3	4.0
M42	6300	35.6	80	80	34	90	56	3	4.5
M48	8000	41	95	95	38	100	65	3	5.0
M56	10000	48.3	112	112	45	119	73	4	5.5
M64	16000	55.7	125	125	50	135	85	4	6.0
M72	20000	63.7	140	140	58	153	95	4	6.0
M80	25000	71.7	160	160	63	165	110	4	6.0
M90	32000	81.7	180	180	71	180	125	5	6.0
M100	40000	91.7	200	200	80	195	140	5	6.0
