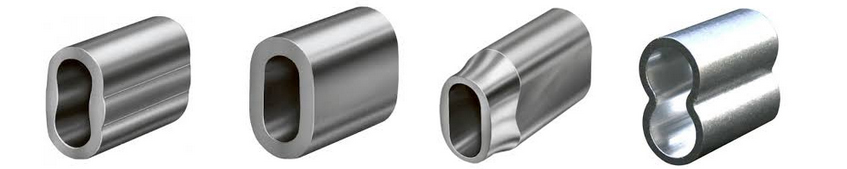

	Flattening Test - Ferrules shall be pressed along the major axis until the inner surfecestmeet.

	Multipurpose, Portable, Universal, Gearless, Hand operated Pulling and Lifting machine, Supplied complete with telescopic, operating handle and standard Length of super flex steel fibre-mixed core wire-rope fitted with Hook or Shackle at one end and fused and tapered at the other end
After completion of the test, there shall be no visible crack on the ferrule.

Type	Normal Size	Length before Pressing Min.	Length after pressing Min	Thickness Min T	Suitable for Normal Wire Rope Size
Type	Normal Size	Length before Pressing Min.	Length after pressing Min	Thickness Min T	Lower Limit	Upper Limit
(1)	(2)	(3)	(4)	(5)	(6)	(7)
Type A	3	11	17	1.61	2.00	3.15
	4.0	10	22	1.7	4.40	4.75
	6	10	23	2.1	5.85	6.30
	8	27	34	3.0	7.85	8.40
	9	30	33	3.50	8.80	9.45
	10	32	35	3.75	9.80	10.50
	11	36	43	5.25	10.75	11.55
Type B	10	45	53	4.2	11.75	12.65
	15	46	50	3.8	13.76	15.75
	17	50	60	5.2	15.76	17.85
	19	56	62	5.00	17.86	19.99
	21	62	70	6.20	20.00	21.99
	23	78	86	7.55	22.00	23.89
	25	83	94	8.00	24.00	25.99
	27	92	108	8.85	26.00	27.99
	29	98	114	9.85	28.00	29.00
	31	101	115	10.00	30.00	31.99
	33	105	118	11.07	32.00	33.99
