Chain Pulley Block

We are the leading company for manufacturer, exporter and supplier of Chain pulley blocks. Chain pulley blocks are the most commonly used lifting devices in erection and maintenance work. Titan is a light weigh sturdy chain block while Super Titan is compact chain block allowing pulling in all directions ranging from 0.5 to 20tons. Both models of Chain pulley blocks require less pull on hand and allow ease of operation. Higher capacity chain blocks are available on request. We offer a wide range of chain pulleys blocks and monorails that are offered in varied capacities from 0. 5 tonnes to 15 tonnes. These pulleys are available with the option of single or three phase motors and mechanical or electro- magnetic breaking systems.

Titan Chain Pulley Block

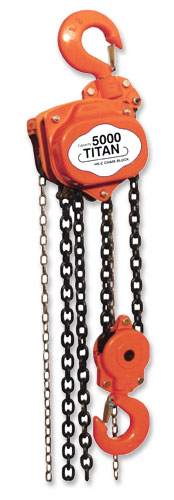

10000 kg.Chain Pulley Block 5000 kg. Chain Pulley Block

Model HS-C?? HS-C1 HS-C1?? HS-C2 HS-C3 HS-C5 HS-C10 Capacitv Ton 0.5 1 1.5 2 3 5 10 Standard Lift m 3 3 3 3 3 3 3 Runnina test load Ton 0.75 1.5 2.25 3 4.5 7.5 3 Headroom (drawn closeup) mm 270 335 410 440 480 600 720 Effort required to lift max load N 160 314 363 324 333 412 412 No. of colums of load chain 1 1 1 2 2 2 4 Load chain dia. mm 5 6 8 6 8 10 10 A 110 142 178 142 178 210 367 Dimensions mm B 114 126 142 126 142 167 167 C 21.5 27 30 30 37 46 54 D 110 142 178 142 178 210 252 Net Weight kg 7 11 17 15 24 39 72 Gross weight kg 10 14 21 18 28 48 87 Packing measurements (LxWxH) cm 28x21x17 30x24x18 34x29x21 33x28x19 38x33x20 45x39x24 55x51x29 Extraweight per meter of extra lift kg 1.4 1.7 2.3 2.5 3.7 5.3 9.7 Remarks: in addition to standard lift, we can supply orders with higher lifts Shear Legs Tubular steel tripods complete with shackle for suspension of pulley blocks Capacities Load Tons Length of Legs Ft. 1 14 2 14 3 18 4 20 5 20 Inside Parts Light weight and sturdy Ease of handling Lifelong lubrication Minimal maintenance required Surface hardened gears Extended working life Use of needle roller bearings High operating efficiency Smooth passage of load chain Machine guide rollers Smooth hand chain operation Unique cover design Self sustaining maintenance free friction brake Reduce downtime Imported grade 80 load chain for strength and wear resistance Longer chain life Anti-corrosive powder coated finish Better aesthetics
