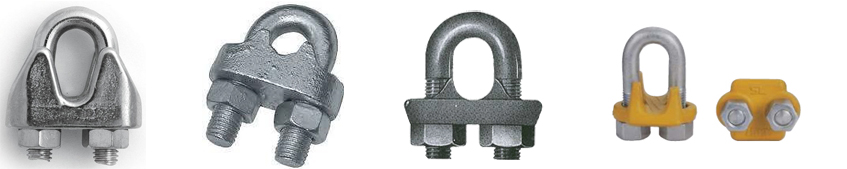

U Clamps

Bull Dog Grips

Forged Wire Rope Clamps

Bull Dog Grips

Bull Dog Grips (ISS)

IS: 2361 / 1970
Drop Forged Steel Wire Rope Bull Dog Grips

Figure1: Right way of applying Bull Dog Grips

Figure2: Wrong way of applying Bull Dog Grips

Specifications

Note

For intermediate sizes of wire ropes, the next larger size of bull dog grip shall be used.

Forged Wire Rope Clamps

Forged Wire Rope Clamps (SL 450)

SL- 450

Sealinkers Clamps

Each clamps has a product Identification Code for Material traceability, the name Sealinkers or ???SL???, and a size forged into it.
Entire Clamps are galvanized / Powder Coated to resist corrosive and rusting action.
Only Genuine SL Clamps have a Yellow colour for instant recognition.
All Clamps have rolled threads and extra heavy nuts.

Rope Size		Dimensions (mm)								Min No. of Clamps	Amt. of Rope to Turn Back in (cm)P
(in.)	(mm)	A	B	C	D	E	F	G	H	Min No. of Clamps	Amt. of Rope to Turn Back in (cm)P
3/8	9-10	11.2	38.1	19.1	25.4	23.1	19.2	41.4	49.3	2	16.5
1/2	13	12.7	47.8	25.4	30.2	28.7	22.4	48.5	58.0	3	29.2
5/8	16	14.2	60.5	31.8	33.3	34.0	23.9	52.5	63.5	3	30.5
5/4	18-20	15.8	70.0	36.6	38.1	35.8	26.9	57.0	72.0	4	46
7/8	22	19.1	79.5	41.2	44.5	40.4	31.8	62.0	80.5	4	48
1	24-26	19.1	89.0	46.0	47.8	45.2	31.8	67.0	88.0	5	66
1 1/8	28-30	19.1	98.5	51.0	51.0	48.5	31.8	71.5	91.0	6	86
1 1/4	32-34	22.4	108	45.0	58.5	55.5	36.6	79.5	105	7	112
1 3/8	36	22.4	118	58.5	60.5	58.5	36.6	79.5	106	7	112
1 1/2	38-40	22.4	125	60.5	65.5	62.0	36.6	86.5	113	8	137
1 3/4	44-46	28.7	146	70.0	77.5	74.5	46.0	97.0	134	8	155
2	48-52	31.8	164	76.0	86.0	83.5	51.0	113	149	8	180

Note

Refer to table I in following these instructions. Turn back specified amount of rope from thimble or loop. Apply first clip one base width from dead end of rope. Apply U-Bolt over dead end of wire rope - live end rests in saddle (Never Saddle a dead horse!).Tighten nuts evenly, alternate from one nut to the other until reaching the recommended torque.

When two clips are required, apply the second clip as near the loop or thimble as possible. Tighten nuts evenly, alternating until reaching the recommended torque. When more than two clips are required, apply the second clip as near the loop or thimble as possible, turn nuts on second clip firmly, but do not tighten. Proceed to Step 3.

When three or more clips are required space additional clips equally between first two - take up rope slack-tighten nuts on each U-Bolt evenly, alternating from one nut to the other until reaching recommended torque.

Wire Rope Splicing Procedures
The Preferred method of splicing two wire ropes together is to use interlocking turn back eyes with thimbles, using the recommended number of clips on each eye
An alternate method is to use twice the number of clips as used for a turn back termination. The rope ends are placed parallel to each other, overlapping by twice the turn back amount shown in the application instruction. The minimum number of clips should be installed on each dead end .Spacing, installation torque, and other instructions still apply.

Important
Apply first load to test the assembly. This load should be of equal or greater weight than loads expected in use. Next, Check and retightens nuts to recommended torque. In accordance with good rigging and maintenance practices, the wire rope end termination should be inspected periodically for wear, abuse, and general adequacy.
