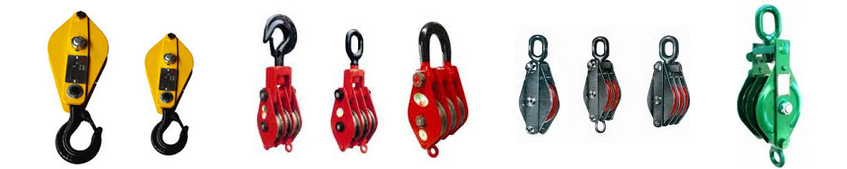

Creatomac is the leading company in providing all kind of Pulley Blocks, Manilla Rope Pulley Block, Wire Rope Pulley Block, Crane Block, Snatch Block for varying applications. Our company is the Manufacturer and Supplier of Pulley Blocks in India and Global. Pulley Blocks are manufactured using superior quality basic materials with advanced technology under strict supervision of the process experts.

Manilla Rope Pulley Block

Wire Rope Pulley Block

Crane Block

Snatch Block

Manilla Rope Pulley Block


General Side View	One - Sheave	Two - Sheave	Three - Sheave


	Single Snatch

Dia. of Sheave	Dia of Rope	S. W. L. in kg	No. Sheave
3?????	1/2"	100	Single
3?????	1/2"	150	Double
3?????	1/2"	250	Triple
4"	5/8???	150	Single
4"	5/8???	200	Double
4"	5/8???	300	Triple
4?????	3/4"	200	Single
4?????	3/4"	400	Double
4?????	3/4"	500	Triple
6"	1"	500	Single
6"	1"	1000	Double
6"	1"	1500	Triple
7"	1?????	600	Single
7"	1?????	1500	Double
7"	1?????	2000	Triple
8"	1?????	1000	Single
8"	1?????	2000	Double
8"	1?????	2500	Triple
10"	2"	1500	Single
10"	2"	2500	Double
10"	2"	4000	Triple

Wire Rope Pulley Block

BS: 4018-1966


General Side View	Single Snatch


One - Sheave		Two - Sheave		Three - Sheave

A General Idea Indicating The Safe Working Loads Of Our Blocks

Dia of Sheave Circf. of Rope		6??? 1???-1?????	7??? 1?????-1?????	8??? 1?????-1?????	10??? 1?????-2?????	12??? 2?????-2?????	14??? 2?????-3???	16??? 3???-3?????	18??? 3?????-4???
S.W. L. tons	Single Sheave	0.75	1.5	2	3	5	6	7	10
	Double Sheave	1	2	3	5	8	10	15	20
	Triple Sheave	1.5	2.5	5	10	12	15	20	25

Safe Working Loads (S.W. L.) Of Rigs B. S.: 4018-1966

Dia of Sheave		Dia of Rope		S.W. L. per Single part of rope Ton	Safe Working Loads of Rigs
inch	mm	inch	mm	S.W. L. per Single part of rope Ton	1/1 Rig Ton	2/1 Rig Ton	2/2 Rig Ton	3/2 Rig Ton	3/3 Rig Ton
5	127	3/8	9	0.75	1.5	2.25	3.0	3.75	4.5
6	152	7/16	11	1.0	2.0	3.0	4.0	5.0	6
7	177	1/2	13	1.25	2.5	3.75	5.0	6.25	7.5
8	203	9/16	14	1.50	3.0	4.50	6.0	7.40	9.0
9	228	5/8	16	2.0	4.0	6.0	8.0	10.0	12.0
11	279	3/4	19	3.0	6.0	9.0	12.0	15.0	18.0
12	304	7/8	22	4.0	8.0	12.0	16.0	20.0	24.0

Selection Criteria: Sheave Dia/Rope Dia = At least 12

The safe working load per single part of rope is approximately one sixth of the nominal breaking load of ropes as 2 2 specified in B.S.302 621 in the 6 x 37 group of tensile strength 100/110
ton / inch (160/175 kgf/mm ). This is the nominal breaking load on which the design of blocks to this standard is based.

The manner of test laid down in schedule II of DOCK Workers (Safety, Health, and Welfare)Regulations, 1990, is as follows:

Article of Gear	Proof Load
Single sheave pulley block	Four times the safe working load
Multiple sheave block with safe working load up to and including 20 tons	Twice the safe working load
Multiple sheave block with safe working load over 20 tons up to and including 40 tons	20 tons in excess of the safe working load
Multiple sheave block with safe working load over 40 tons	One and a half times the safe working load

Note

Higher capacity pulley blocks manufactured against order.

Crane Block

S.W.L. on Hook tons	No of Sheaves	A mm	B mm	For Dia. Wire Rope mm	D mm	?? L mm	E mm	F mm	R mm	Approx. Wt. per Pc kg
10	1	350	300	20	55	720	33	30	35	175
13	1	350	300	20	70	790	39	35	40	190
17	1	450	400	22	75	960	48	40	50	210
12	2	300	250	18	40	750	30	28	30	130
12	2	350	300	20	40	800	30	28	30	170
27	2	400	250	22	70	1060	42	40	42	220
27	2	450	400	22	70	1110	42	40	42	260
35	2	450	400	22	80	1220	48	45	50	280
15	3	300	250	18	45	750	30	25	30	145
18	3	350	300	20	50	850	30	28	30	190
30	3	400	350	22	60	1050	39	35	40	315
35	3	400	350	22	70	1125	39	35	40	315
20	4	350	300	20	55	870	30	28	30	290
27	4	350	300	20	55	980	30	28	30	290
32	4	350	300	20	60	1075	33	30	33	310
45	4	450	400	22	70	1300	40	35	40	475
45	4	500	450	26	70	1300	40	35	40	500

Note

More and larger Sheaves: on request
Hooks: plain or with thrust bearing
Bearing type of sheaves: Roller / Ball Bearing
Safety latch: on request
Also available with Ramshorn hook.
Weight: can be varied on request.
Crane blocks of smaller & larger capacities are available on order.

Snatch Block

Single Sheave

Single sheave with hook

Sheave Size (in)	Wire Rope Size (in)	Capacity at F. OF S. 4:1 US tons	Capacity at F. OF S. 2:1 US tons
4 1/2	3/8 - 1/2	2 1/2	5
6	3/4	8	16
6	3/4	12	24
8	3/4	8	16
8	3/4	12	24
8	1 1/8	22	44
10	5/8 - 3/4	8	16
10	3/4	12	24
10	1 1/8	22	44
12	5/8 - 3/4	8	16
12	3/4	12	24
12	1 1/8	22	44
14	3/4	12	24
14	1 1/8	22	44

Features

Bearings
The 4 1/2" Block is fitted with special bronze bush but can be fitted with taper roller bearings wIth special bronze bush if requested.
Capacity
The 4:1 capacity load given in the table are the maximum head fitting loads that should be applied to the Blocks.These capacity loads are based on a Fador of Safety of 4:1 and the Blocks are proof tested to twice this capacity load.The table also details a comparative capacity
load at Fador of Safety2:1 so that the users may compare the 'High Load' Blocks with alternative makes based on this Lower Safety Fador.

Double Sheave

Light champion snatch block as a double sheave block.
Drop forged swivel hook or swivel shackle.
Can be furnished with bronze bushing and roller bearings.
Opening features permits easy insertion of wire rope in both sheaveswith removal of one bolt.
Can be furnished with hook latch.
Pressurelube fittings.
Fatigue rated.

Standard Design

Sheave Dia. (mm)	Wire Rope Dia (mm)	SWL (tons)	Test (tons)	Weight each (kg)
10" (250)	20	3	12	40
12" (300)	20	3	12	43
12" (300)	24	5	20	46
14" (350)	24	5	20	59
14" (350)	28	6	24	65
16" (400)	28	6	24	85
16" (400)	29~32	8	32	98

Heavy Duty Snatch Block

Sheave Dia. (mm)	Wire Rope Dia (mm)	SWL (tons)	Test (tons)	Weight each (kg)
16" (400)	29~32	10	40	104
16" (400)	32~36	15	60	139
18" (460)	32~36	15	60	153
18" (460)	38~42	20	80	204
20" (500)	38~42	20	80	226
20" (500)	50~56	30	120	300
24" (610)	54~60	30	200	450
