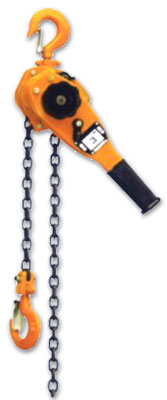

Ratchet Lever Hoist

  Ratchet Lever Hoist

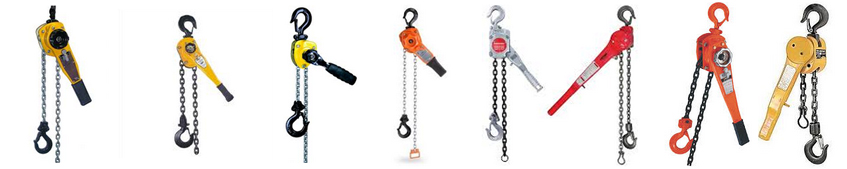

Creatomac is the leading company in providing all kind of Ratchet Lever Hoist for varying applications. Our company is the Manufacturer and Supplier of Ratchet Lever Hoist in India and Global. Ratchet Lever Hoist are manufactured using superior quality basic materials with advanced technology under strict supervision of the process experts.

Ratchet Lever Hoist
Ratchet Lever Hoist
Ratchet Lever Hoist
Rachet Lever Hoist
Specification
Model
HSH 3/4
HSH 1-1/2
HSH 3
HSH 6
Capacity
ton
0.75
1.5
3
6
Lift
m
1.5
1.5
1.5
1.5
Test load
ton
1.125
2.25
4.5
7.5
Min. distance between hooks:
mm
303
365
485
600
Pull on lever to lift full load
kgf
20
21
33
35
No. of load chain falls
mm
1
1
1
2
Diameter of load chain
mm
6
7
10
10
Length of lever handle : D
mm
290
410
410
410
Dimensions mm
A
139
174
200
200
B
84
108
115
115
C
153
160
185
230
Net weight
kg
7
11
20
30
