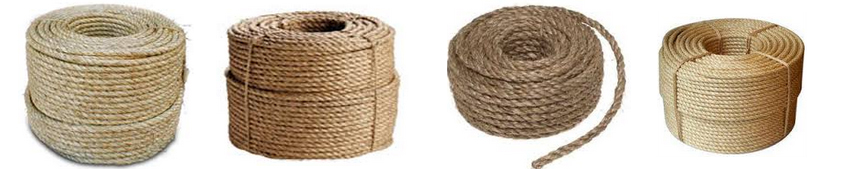

Manilla and Sisal Ropes
About The Ropes
Made from natural hard fibres Manila & Sisal Ropes are the best of their kind in India. Made in accordance to rigid 1.5.1. specifications. Ropes 1jre available in sizes varying from 4mm. dia to 76 mm. dia in Manila (Grade - I, II & III) and Sisal (Grade 'A'). Their distinct and superior characteristics, offer both high breaking strength and maximum flexibility in use. They have a wide range of applications in various industries.
Dia in mm
Circumference in inches Min. No of yarns per strands Approx. Wt per coil of 220 meters Minimum Breaking Strength of Manilla Rope as per (as per IS: 1084/1%9) and Sisal Rope (as per IS: 1321/69)
Manilla Grade I
Manilla Grade II
Manilla Grade III
Sisal
8
1
3
12
545
483
419
483
10
1 1/2
4
15
705
635
559
635
12
1 1/2
6
23
1065
955
838
955
14
1 3/4
8
31
1450
1285
1118
1285
16
2
10
42
2030
1805
1576
1805
18
2 1/4
13
49
2440
1880
2135
1880
20
2 1/2
16
61
3250
2845
2215
2845
22
2 3/4
19
73
3860
3405
2972
3405
24
3
23
88
4570
4065
3556
4065
26
3 1/4
27
103
5335
4725
4140
4725
28
3 1/2
31
118
6095
5325
4725
5325
30
3 3/4
36
138
6860
6095
5385
6095
32
4
41
155
7875
6860
6071
6860
36
4 1/2
52
197
9650
8635
7570
8635
40
5
64
244
11940
10415
9703
10415
44
5 1/2
77
298
14225
12700
11024
12700
48
6
92
352
16765
14735
12955
14735
52
6 1/2
108
414
19560
17275
15088
17275
.56
7
125
479
22355
19815
17425
19815
60
7 1/2
144
549
25400
22605
19813
22605
64
8
164
639
29000
25700
22600
25700
88
8 1/2
185
707
32000
28500
24700
28500
72
9
207
792
35800
32700
27600
32700
76
9 1/2
231
881
39500
35000
30000
35000
Material Handling
Manila and Sisal Ropes are used. extensively in engineering industries and at construction sites for material handling. Due to their heavy load lifting capacity these Ropes are well suited for hauling and cargo lifting operations.
Ports And Shipping
Manila Ropes of various diameters are widely used for towing, mooring and dry docking by Port Trusts and Shipping Industries. Manila Ropes offer excellent resistance to action of water and marine organisms, and are therefore ideally, suited in the Marine Industry.
Transport
Sisal Ropes find wide applications in the domestic transport industrY for safe handling of cargo. Due to their excelient shock absorbing capability Ropes are acknowledged to be the most reliable for this end use.
Tower Erection
Picking Operation
Material Handling
Tower Erection
Picking Operation
Material Handling
Weights are subject to +- 5% maximum variation. Tensile strengths are approximately average and the minimum shall be within minus 1O% of the listed value. The values shown above are for regular aly ropes.
Major Users
  • Electricity Boards
    For line stringing, to'vver erection, transformer hoisting and material handling.
  • Defence
    For several application:> in the armed forces; such as towing' of gunnery surface targets, rope d rags for recovery of vehicles, arrester barriers, pantoon brkJges, tentage, rappelling etc. Also used by para-military forces and defence proouction establishments.
  • Ports and ShipbuildingsYards
    In towing, mooring, dry docking and similar other operations.
  • Stevedaring Companies
    In cargo load ing and unl Jad hg operations
  • Steelpipe Industry
    in all ports. In pickling and anodizilg operations.
Other Applications
Used in sugar factoriesi, engineering, construction and oil exploration industries, for material handling. For manuf acturing all Types of Nets, String etc.
Advantages
  • Light weight
  • No slippage
  • High Strength
  • Flexible
  • Minimum elongation
  • Good shock energy'
  • Negligible water obsorption
  • Good heat resistance
  • Excellent
  • Chemical resistance
  • Gocx:lfrictional resistance.
