Chains

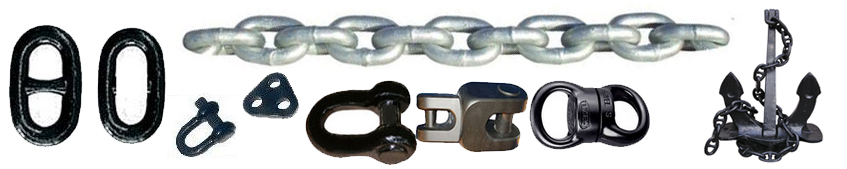

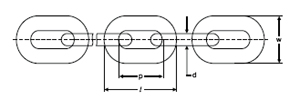

Nominal Size	Outside Link Length	Outside Link Width	Pitch	Capacity				WT / MTR
Nominal Size	Outside Link Length	Outside Link Width		GR80		GR30
dn	5dn to 4.75dn	3.25dn to 3.5 dn Max	3dn	SWL	MBL	SWL	MBL
d	l	w	p	TONS	TONS	TONS	TONS	KGS
5	25	18	15	0.80	3.20			0.50
6	30	21	18	1.10	4.40	0.44	1.76	0.83
7.1	35.5	25	21.3	1.60	6.40	0.63	2.52	1.10
8	40	28	24	2.00	8.00	0.80	3.20	1.40
9	45	32	27	2.50	10.00	1.00	4.00	1.80
10	50	35	30	3.20	12.80	1.25	5.00	2.10
11	55	39	33	3.80	15.20	1.50	6.00	3.00
12	60	42	36	4.60	18.40	1.80	7.20	3.10
14	70	49	42	6.30	25.20	2.40	9.60	4.50
16	80	56	48	8.00	32.00	3.20	12.80	5.60
18	90	63	54	10.00	40.00	4.00	16.00	7.50
20	100	70	60	12.50	50.00	5.00	20.00	9.00
22	110	77	66	16.00	64.00	6.00	24.00	11.70
25	125	88	75	20.00	80.00	7.80	31.20	14.00
28	140	98	84	25.00	100.00	9.70	38.80	17.60
32	160	112	96	32.00	128.00	12.70	50.80	23.40
36	180	126	108	40.00	160.00	16.00	64.00	29.00
40	200	140	120	50.00	200.00	19.80	79.20	36.00
45	225	158	135	63.00	252.00	25.00	100.00	45.00

GR80 CHAINS CONFIRM TO IS : 6216/82 (CALIBRATED) & IS : 6215/82 (NON-CALIBRATED)
GR30 CHAINS CONFIRM TO IS : 2429/82 PART 2 (CALIBRATED) & IS : 2429/82 PART 1 (NON-CALIBRATED)

Long link Chains

Nominal Size	Outside Link Length	Outside Link Width	Pitch	Capacity
Nominal Size	Outside Link Length	Outside Link Width		GR80
dn	6dn	3.6dn Max	4dn	SWL	MBL
d	l	w	p	TONS	TONS
Actual
13	110	55	84	1	4
16	149	63	117	3.2	12.8
18	150	69	114	4.25	17
20	159	75	119	5	20
As per catalog
13	78	47	52		0
16	96	58	64		0
18	108	65	72		0
20	120	72	80		0
22	132	79	88
24	144	86	96
26	156	93	104
28	168	101	112
30	180	108	120
32	192	115	128
