Device

  Webbing Slings

We are the leading supplier of the Webbing Slings, Simplex Webbing Slings, Duplex Webbing Slings, Triplex Webbing Slings. We offer you different types of Polyester Webbing Slings depending on your application and requirements.

Simplex Webbing Slings
Simplex Webbing Slings
Duplex Webbing Slings
Duplex Webbing Slings
Triplex Webbing Slings
Triplex Webbing Slings

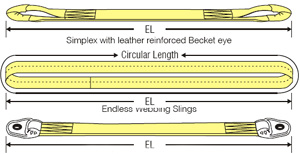

Simplex Webbing Slings
Simplex Webbing Slings
TYPE : SIMPLEX-KSF

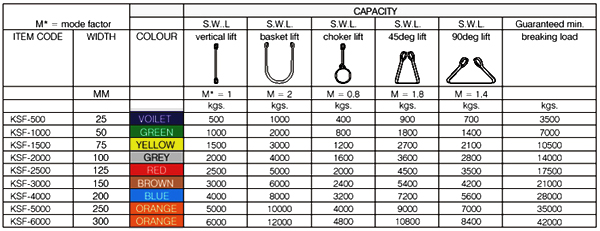

SIMPLEX-KSF Specificaions
The colour combination as shown in the chart is a mere indicator, however the colour may change subject to availability of raw materials.
Simplex Webbing Slings
  • Two types : Flat webbing & Endless sling
  • Flat and wide load bearing surface
  • Lifts smooth and fragile objects without risk of damage
  • High strength to weight ratio
  • Colour coded for identification even when soiled
  • Wide variety of lifting modes
  • Anti-abrasion webbing sheave (AAWS) protection available
  • Anti-cutting Sobitex polyurethane sleeves to protect your webbing slings from extra sharp edges
  • Conforms to B. S. 3481 Part 2
Zebra flat webbing slings are manufactured from high tenacity, 100% polyester yarn. Simplex
slings is a single layered webbing. Sling ends are terminated either in reinforced loops or any
combination of metal end fittings. Manufacturer???s test certificate is provided for safe work load
along with the slings. Simplex slings are preferred because of their broad width which gives wider
support to lifts. The slings are of three types, namely simplex sling with soft eyes, simplex sling with
} metal end fitting and endless sling. They normally lift loads with the sling revved around the load
(Choke hitch), or on two parts of the sling (Basket Hitch). They are tested in straight pull.
Application Simplex Webbing Sling
How to look after your Zebra Sling
  • Slings can be washed in cold water with a mild detergent.
  • Zebra slings are resistant to most chemicals but avoid ammonia, alkalis and strong acid.
  • Use anti cutting webbing sleeves at sharp contact points to get more life of your Zebra Sling.
Anti-Abrasion Webbing Sleeve Sobitex Double Sided Anti-Cutting Sleeve
Anti-abrasion Webbing sleeve
(AAWS)
Sobitex double sided anti-cutting sleeve.
Advantages over Steel Rope or Chain
Zebra polyester Slings are considered lighter than a metal product of comparable lifting performance
and as a consequences are both safer and easier to handle. The main safety and handling advantage
of the Zebra Slings are listed below:
  • A twisted wire rope may grip the load in the wrong place creating an imbalance. But due to the
    suppleness of polyester the Zebra Sling, it accommodates irregularities of the load.
  • Do not weaken with age
  • Absorbs shocks
  • No corrosion - wire ropes can rust unseen from inside
  • Easier to inspect - if it looks all right, it is alright
  • Less weight means easier, quicker working, less risk of back injuries
  • Less weight also means cheaper transport - only 20% of the steel chain for example.
  • Less risk of damage to sensitive or painted surfaces
  • Safe in hazardous or explosive environments as there is no risk of sparking
Moveable webbing protective sleeve
High abrasion and cutting resistance for handling sharp-edged cargo. 100% polyurethane
Movable Webbing Protective Sleeve and Movable Secutex Sleeve
Material of construction 100% Polyester
Working temp. range -40oC to +100oC
Tensile strength 97 kg/mm
Elasticity 2-5% extension at S.W. L.
15-20% extension at break load
Chemical resistance
properties		 Resistant to mild acids but
degrade in alkalies
Electrical properties Non conducting
Melting point 260oC

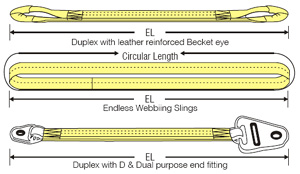

Duplex Webbing Slings
Duplex Webbing Slings
TYPE : DUPLEX-KDF / ENDLESS

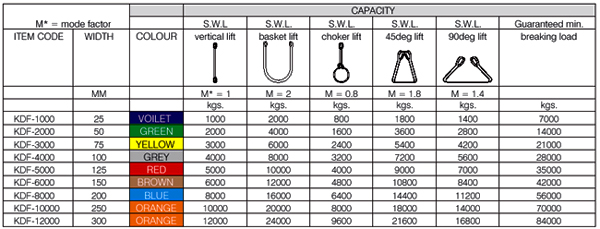

DUPLEX-KDF Specifications
The colour combination as shown in the chart is a mere indicator, however the colour may change subject to availability of raw materials.
Features
  • Two types : Flat webbing & Endless sling
  • Flat and wide load bearing surface
  • Lifts smooth and fragile objects without risk of damage
  • High strength to weight ratio
  • Colour coded for identification even when soiled
  • Wide variety of lifting modes
  • Anti-abrasion webbing sheave (AAWS) protection available
  • Anti-cutting Sobitex polyurethane sleeves to protect your webbing slings from extra sharp edges
  • Conforms to B. S. 3481 Part 2
Zebra flat webbing slings are manufactured from high tenacity, 100% polyester yarn. Simplex
slings is a single layered webbing. Sling ends are terminated either in reinforced loops or any
combination of metal end fittings. Manufacturer???s test certificate is provided for safe work load
along with the slings. Simplex slings are preferred because of their broad width which gives wider
support to lifts. The slings are of three types, namely simplex sling with soft eyes, simplex sling
with metal end fitting and endless sling. They normally lift loads with the sling revved around the
load (Choke hitch), or on two parts of the sling (Basket Hitch). They are tested in straight pull.

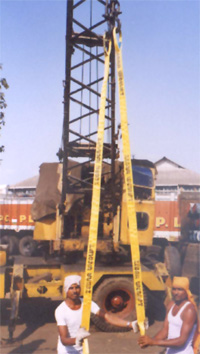

Application Duplex Webbing Sling
How to look after your Zebra Sling
  • Slings can be washed in cold water with a mild detergent.
  • Zebra slings are resistant to most chemicals but avoid ammonia, alkalis and strong acid.
  • Use anti cutting webbing sleeves at sharp contact points to get more life of your Zebra Sling.
Anti-Abrasion Webbing Sleeve Sobitex Double Sided Anti-Cutting Sleeve
Anti-abrasion Webbing sleeve
(AAWS)
Sobitex double sided anti-cutting sleeve
Advantages over Steel Rope or Chain
Zebra polyester Slings are considered lighter than a metal product of comparable lifting performance
and as a consequences are both safer and easier to handle. The main safety and handling advantage
of the Zebra Slings are listed below:
  • Because of the suppleness of polyester, the Zebra Sling accommodates irregularities of the load,
    twisted wire rope may grip in the wrong place creating imbalance
  • Do not weaken with age
  • Absorbs shocks
  • No corrosion - wire ropes can rust unseen from inside
  • Easier to inspect - if it looks all right, it is alright
  • Less weight means easier, quicker working, less risk of back injuries
  • Less weight also means cheaper transport - only 20% of the steel chain for example.
  • Less risk of damage to sensitive or painted surfaces
  • Safe in hazardous or explosive environments as there is no risk of sparking
Moveable webbing protective sleeve
High abrasion and cutting resistance for handling sharp-edged cargo. 100% polyurethane
Movable Webbing Protective Sleeve and Movable Secutex Sleeve
Material of construction 100% Polyester
Working temp. range -40oC to +100oC
Tensile strength 97 Kg/mm
Elasticity 2-5% extension at S.W. L.
15-20% extension at break load
Chemical resistance
properties		 Resistant to mild acids but
degrade in alkalies
Electrical properties Non conducting
Melting point 260oC
Triplex Webbing Slings
Leather Protected Reinforced Becket Eye
Leather protected reinforced Becket eye
TYPE : TRIPLEX-KTF (AS PER BL WITH SAFE FACTORS 1:TYPE : TRIPLEX-KTF (AS PER BL WITH SAFE FACTORS 1:7)
TRIPLEX-KTF Specifications
Factor of safety for webbing 1:7
TYPE : QUADRAPLEX-KQF (AS PER MFGR'S TYPE : QUADRAPLEX-KQF (AS PER MFGR'S STANDARDS)

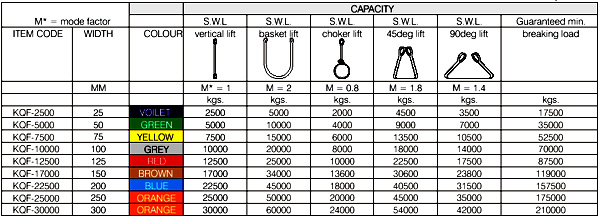

QUADRAPLEX-KQF Specifications
Factor of safety for webbing 1:7
The colour combination as shown in the chart is a mere indicator, however the colour may change subject to availability of raw materials.
Features
  • Two types : Flat webbing & Endless sling
  • Flat and wide load bearing surface
  • Lifts smooth and fragile objects without risk of damage
  • High strength to weight ratio
  • Colour coded for identification even when soiled
  • Wide variety of lifting modes
  • Anti-abrasion webbing sheave (AAWS) protection available
  • Anti-cutting Sobitex polyurethane sleeves to protect your webbing slings from extra sharp edges
  • Conforms to B. S. 3481 Part 2
Zebra flat webbing slings are manufactured from high tenacity, 100% polyester yarn. Triplex slings are stitched with three layers of webbing throughout their length. Sling ends are terminated either in reinforced loops or any combination of metal end fittings. Manufacturer's test certificate is provided for safe work load along with the slings.

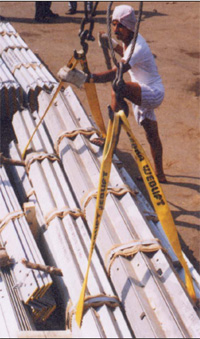

Application Triplex Webbing Sling
How to look after your Zebra Sling
  • Slings can be washed in cold water with a mild detergent.
  • Zebra slings are resistant to most chemicals but avoid ammonia, alkalis and strong acid.
  • Use anti cutting webbing sleeves at sharp contact points to get more life of your Zebra Sling.
Anti-Abrasion Webbing Sleeve Sobitex Double Sided Anti-Cutting Sleeve
Anti-abrasion Webbing sleeve
(AAWS)
Sobitex double sided anti-cutting sleeve.
Advantages over Steel Rope or Chain
Zebra polyester Slings are considered lighter than a metal product of comparable lifting performance
and as a consequences are both safer and easier to handle. The main safety and handling advantage
of the Zebra Slings are listed below:
  • Because of the suppleness of polyester, the Zebra Sling accommodates irregularities of the load,
    twisted wire rope may grip in the wrong place creating imbalance
  • Do not weaken with age
  • Absorbs shocks
  • No corrosion - wire ropes can rust unseen from inside
  • Easier to inspect - if it looks all right, it is alright
  • Less weight means easier, quicker working, less risk of back injuries
  • Less weight also means cheaper transport - only 20% of the steel chain for example.
  • Less risk of damage to sensitive or painted surfaces
  • Safe in hazardous or explosive environments as there is no risk of sparking
Moveable webbing protective sleeve
High abrasion and cutting resistance for handling sharp-edged cargo. 100% polyurethane
Movable Webbing Protective Sleeve and Movable Secutex Sleeve
Material of
construction		 100% Polyester
Working temp. range -40oC to +100oC
Tensile strength 97 kg/mm
Elasticity 2-5% extension at S.W. L.
15-20% extension at break load
Chemical resistance
properties		 Resistant to mild acids but
degrade in alkalies
Electrical properties Non conducting
Melting point 260oC
