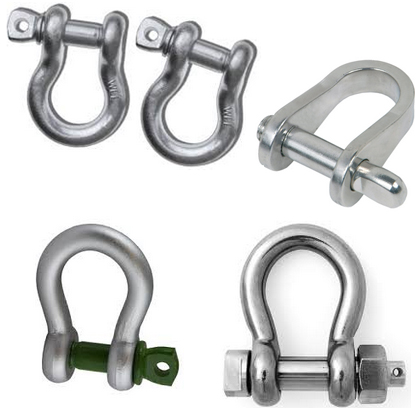

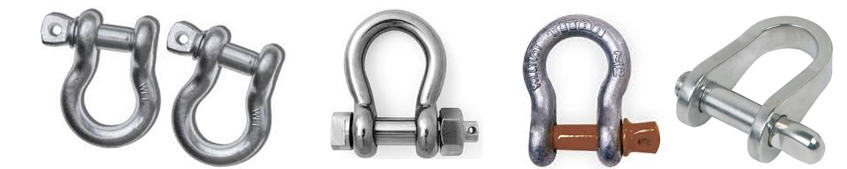

Bow Shackles

We are the leading company in providing all kind of Bow Shackles, Alloy Steel Shackles, Mild Steel Shackles for varying applications. Our company is the Manufacturer and Supplier of Bow Shackles, Alloy Steel Shackles, Mild Steel Shackles in India and Global. Bow Shackles, Alloy Steel Shackles, Anchor Bow Shackle, Mild Steel Shackles are manufactured using superior quality basic materials with advanced technology under strict supervision of the process experts.

Alloy Steel Shackles

Mild Steel Shackles

Alloy Steel Shackles

Alloy Steel Bow Shackles


Nut Bolt Type Anchor Bow Shackle	Round Pin Anchor Bow Shackle
SL-2130 Bolt type anchor shackles with thin head bolt-nut with cotter pin. Meets the requirements of Federal Specification	SL-209 Round pin anchor shackles meet the requirements of Federal Specification

Working Load Limit Tonnes ISS Crosby	Body Dia d C (mm)	Pin Dia D B (mm)	Jaw Inside Width (W) A (mm)	Bow Dia (F) (mm)	Inside Length C (mm)	Eye Outside Dia (E) (mm)	Average Weight with Nut Bolt Type Pin (kg)
0.33	4.8	6.4	9.7	15.2	22.3	14.2	0.0
0.5	6.4	7.9	11.9	19.8	28.7	15.5	0.1
0.75	7.9	9.7	13.5	21.3	30.9	19.1	0.1
1.0	9.7	11.2	16.8	26.1	36.5	23.1	0.1
1.5	11.2	12.7	19.1	28.7	42.9	26.9	0.2
2.0	12.7	16.0	20.6	33.3	47.7	30.2	0.3
3.25	16.0	19.1	26.9	42.9	60.5	38.1	0.6
4.75	19.1	22.4	31.8	51.0	71.0	46.0	1.0
6.5	22.4	25.4	36.6	58.0	84.0	53.0	1.5
8.5	25.4	28.7	42.9	68.5	95.0	60.5	2.4
9.5	28.7	31.8	46.0	74.0	108.0	68.5	3.1
12.0	31.8	35.1	51.5	82.5	119.0	76.0	4.3
13.5	35.1	38.1	57.0	92.0	133.0	85.0	6.0
17.0	38.1	41.4	60.5	98.5	146.0	92.0	7.8
25.0	44.5	51.0	73.0	127.0	178.0	106.0	13.8
35.0	51.0	57.0	82.5	146.0	197.0	122.0	20.4
55.0	66.5	70.0	105.0	184.0	267.0	145.0	38.9
85.0	76.0	82.5	127.0	200.0	330.0	165.0	70.0
120.0	92.0	95.0	133.0	229	372.0	203.0	120.0
150.0	104.0	108.0	140.0	254.0	368.0	229.0	153.0

Features

Working Load Limit permanently shown on every shackle.
Forged - Quenched and Tempered, with alloy pins.
Capacities1 ton to 150 tons.
Shackles 55 tons and smaller can be can be furnished proof tested with certificates to designated
standards, such as ABS, DNV, Lloyds, or other certification.
Material Certification (Chemical) must be requested at the time of order.
Made from SAE 8620

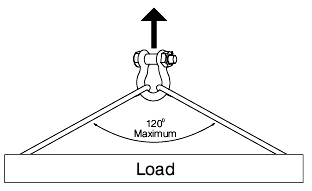

	Shackles symmetrically loaded with two leg slings having a maximum included angle of 120 can be utilized to full Working Load Limit.
Angle loads must be applied in the plane of the bow	Never exceed 120 included angle. Use Bolt Type and Screw Pin Shackles Only

Side Loading reduction Chart For Screw Pin & Bolt Type Shackles Only
Angle of Side load from vertical in line of shackle	Adjusted WLL
0^o In Line	100% of Rated WLL
45^oFrom In Line	70% of Rated WLL
90^oFrom In Line	50% of Rated WLL

Note

Maximum Proof Load is 2 times the Working Load Limit. Minimum Ultimate Load is 5 times the
Working Load Limit.

Mild Steel Shackles

Mild Steel Bow Shackles

Note

The pin diameters actually used may be based on any standard series for sizes of bar material provided that the intervals between adjacent sizes do not exceed the R20 Interval (1.12) The next size above the minimum pin diameter, D min as given in the above table should be used. The Nominal diameter D used is then subject to the tolerances specified in 5.2 of IS:6132 (Part I). 1971 The eye outside diameter then becomes twice the nominal Pin Diameter D subject to the tolerances in 5.2 of IS:6132 (Part II) - 1971.
Specification for Shackles : Part I General Requirement for grade 30, 40, and 63 only.
Shackles of Grade 30, 40, 63 confirm to I.S.I specification 6132
